FlySky-i6-Mod-10ch

Description:

A collection of software modifications for the FlySky i6, some useful, some experiment. All use of this repository is experimental and you use at your own risk. But, progress is being made. Please also note that this project is now contributed by many developers/engineers who deserve lots of recognition for their (free) time, knowledge & effort, so please say thanks to all contributors and not me as a single entity. Open/Free Devs need hugs too. Thanks 🙂

Project goals:

Increase number of channels (using PPM or ibus)
Enable Mavlink/APM Telemetry (using ia6b receiver)
Ability to edit TX Voltage reading & alarm (allowing lithium battery power)
Edit duration of 1 minute ‘inactive’ alarm
Functional Flight Timer
RSSI

Notable thanks to contributors (alphabetical order): Benbojangles, DBorthwick, mhils, Povlhp, qba667,ThomHpl

/—————————————————————————————————–/

At present we have the following achievements using the FlySky i6:

We are able to flash different official firmware to the i6 and explore each new firmware

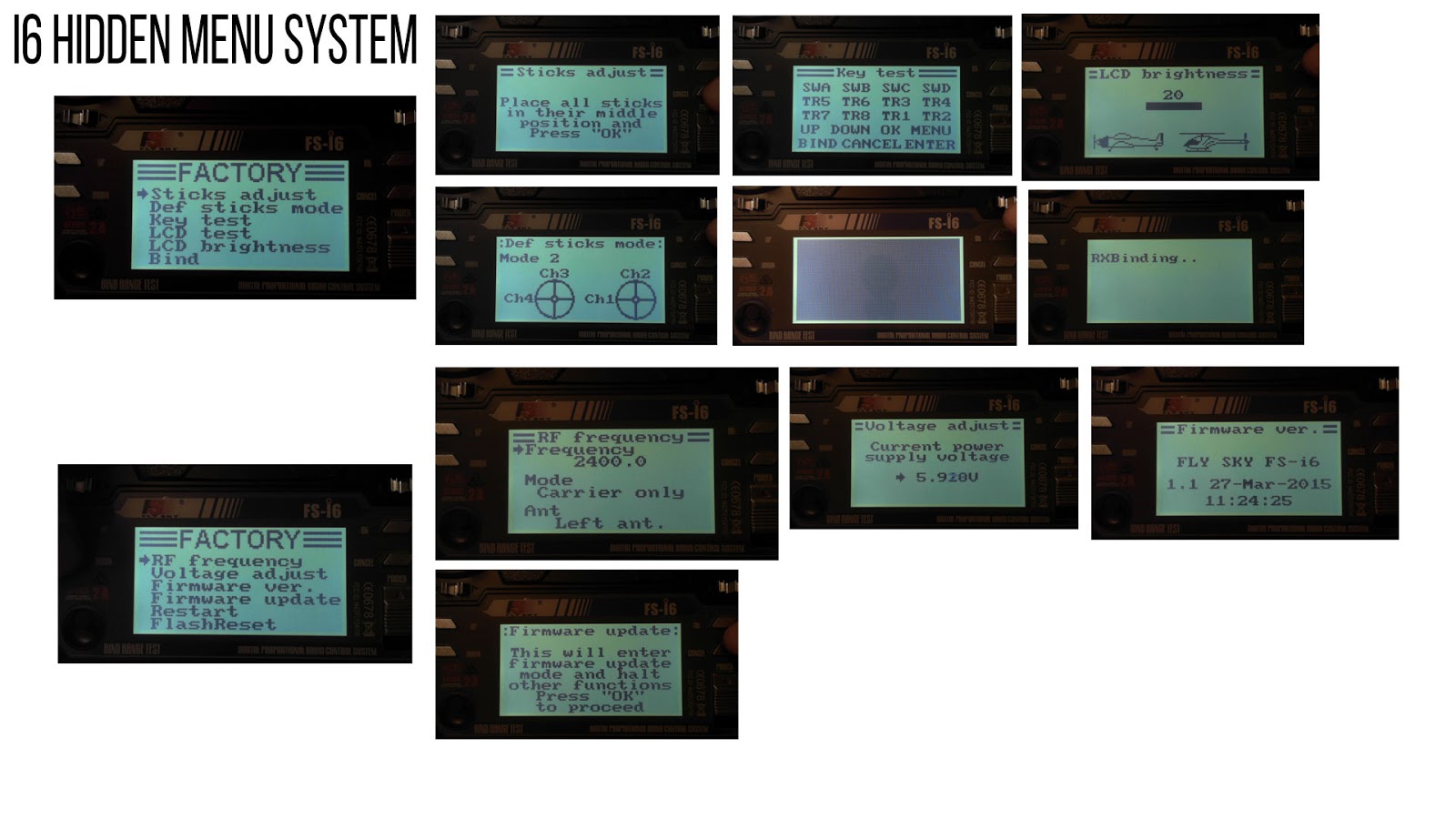

there are hidden menus to change things like: e.g: tx voltage measurement, stick centering etc

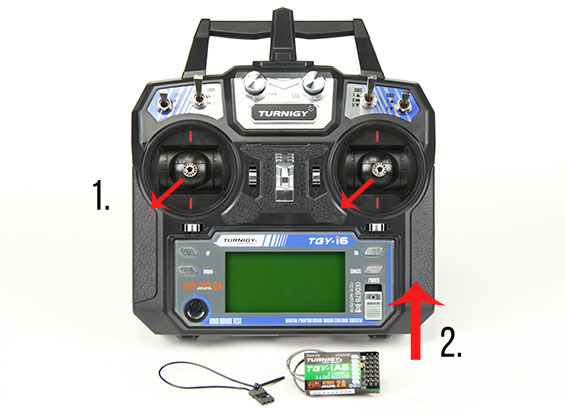

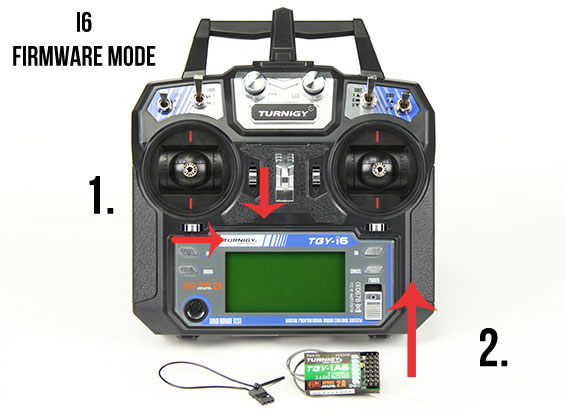

there is secret way to enter firmware update mode

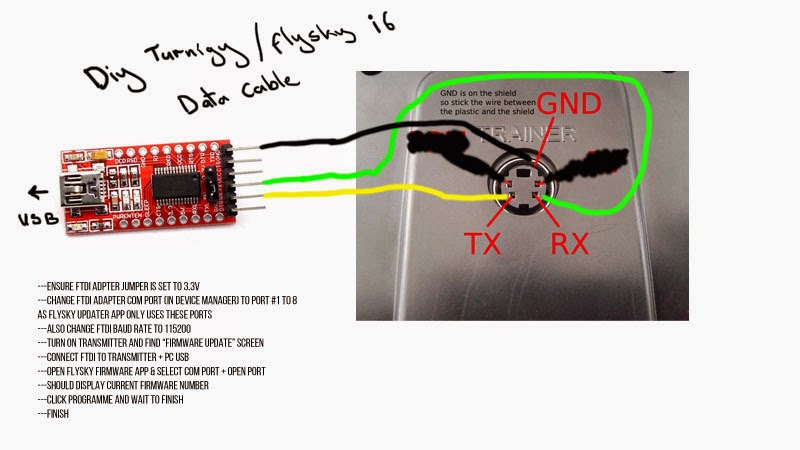

flashing the i6 using trainer port – to – FTDI/UART does not affect the bootloader code (as is understood 17/11/2015)
